Epsilon Aurigae Spectra

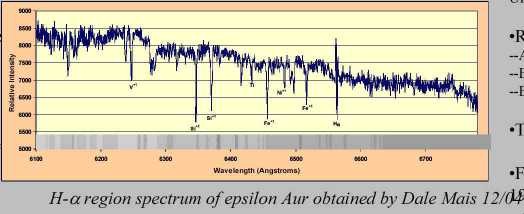

Spectrum of Epsilon Aurigae
by
Dale Mais

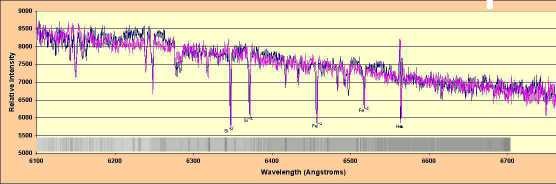

Blue is 12/10/2004 * (12/1/2004 V= 3.030
and 12/6/2004 V= 3.014)
Violet is 2/04/2005 * (02/3/2004 V= 2.963 and 02/6/2005 V= 2.960)
Equipment on a C-14
Spectrometer connected to a C-14 via flip mirror
Equipment
C-14
coupled to the SBIG spectrometer which has been modified slightly to have
higher resolution gratings. The resolution of that particular spectrum was
~0.4A/pixel. I use an ST-109XME coupled to the spectrometer, and Vspec software.
12/04/2004
Dale E. Mais, Ph.D. Research
Investigator New Leads
Department Ligand Pharmaceuticals, Inc.
10255 Science Center Dr.
San Diego, CA 92121
Phone: (858) 550-7832
email: dmais@ligand.com
Dr. Lothar Schanne
Hohlstrasse
19 D-66333 Všlklingen-Ludweiler
Tel. +49 6898 43864 Handy: 00352 021 238598
e-mail: schanne@t-online.de oder novatec@vo.lu

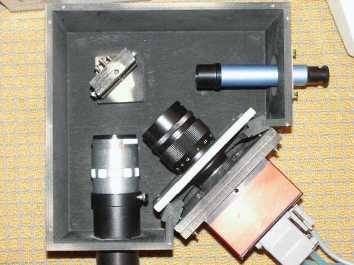

Dr. Schanne's Homemade Spectrometer

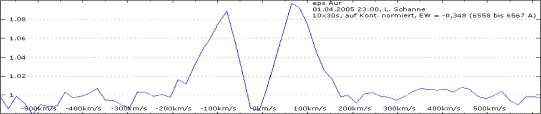

1 April 2005
Hydrogen alpha detail
Spectrometer
mounted on a
5 inch Maksutov-Newton
Telescope

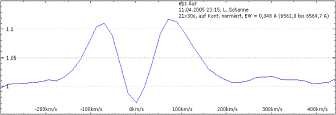

11
April 2005
Hydrogen alpha detail

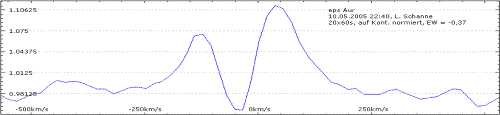

10 May
2005
Hydrogen alpha detail

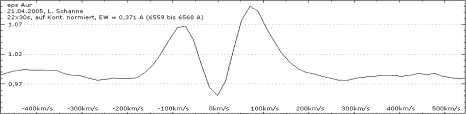

21
April 2005
Hydrogen alpha detail

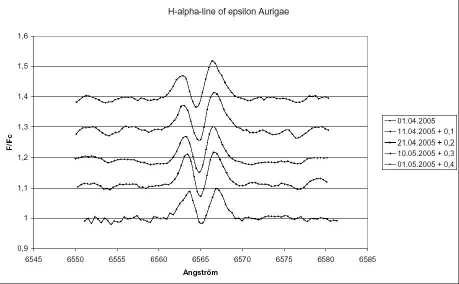

In an e-mail of 15 May 2005 Dr. Schanne wrote:
" I had the possibility to observe eps Aur for some minutes last nights again. In the annex You find the results: the Ha-Lines as typical shell-spectra compared for 5 dates. You can see the variation of the intensities of the wings. The red wing is increasing, the blue one is decreasing with time."

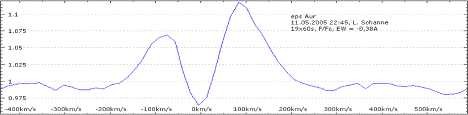

11 May
2005
Hydrogen alpha detail

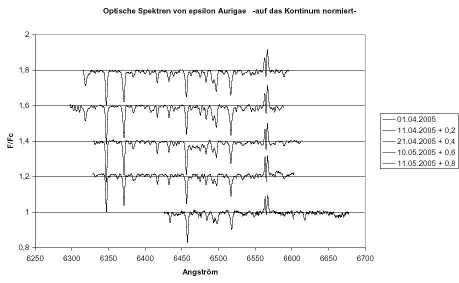

17 May 2005
17 May 2005
Modified 20 May 2005
